The Fairey Rotodyne

The idea of a convertiplane is not new. A combination of a helicopter and a fixed-wing aircraft has been tried several times. However, such a convertiplane not only combines the advantages of both separate types, but also the disadvantages like higher costs, lower speed and range and less capacity! In spite of this a British aircraft manufacturer almost succeeded to make this formula economical feasible.

However, the project failed for political reasons and, most likely, also because of poor company management. The plane involved is the Rotodyne of the late fifties/early sixties, a design from Fairey Aviation Ltd.

How it started…

Artist\'s impression of the Rotodyne released by Fairey on 23 July 1953
Artist\'s impression of the Rotodyne released by Fairey on 23 July 1953

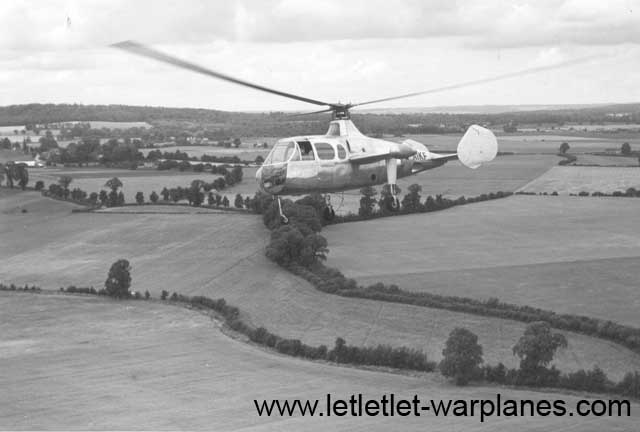

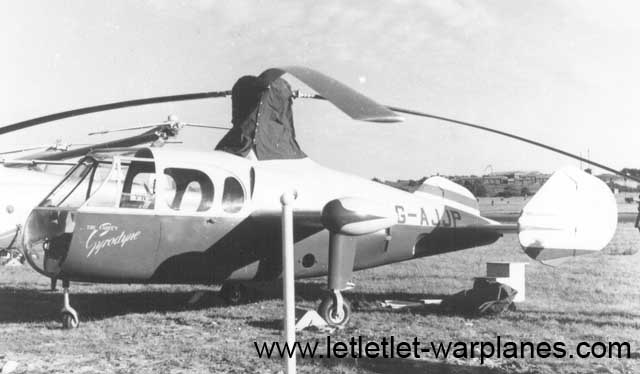

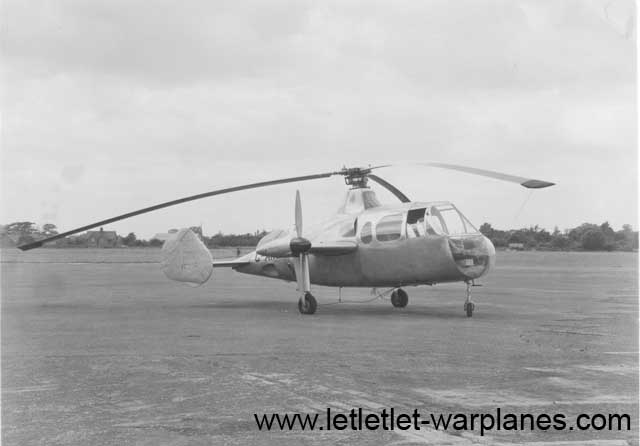

Preceding the Rotodyne, Fairey already had some experience with this type of design, Already in 1947 Fairey test pilots flew the Gyrodyne. This was a small helicopter fitted with an extra tractor propeller fitted at the end of a short wing stub, The Gyrodyne could start and land as a normal helicopter with the rotor torque compensated by the propeller. During forward flight the rotor could be declutched from the power source and set in autorotation. The propeller served in this case for propulsion. Both propeller and rotor were driven by a single 520 hp Alvis Leonides T air-cooled radial engine buried in the fuselage centre section. Two prototypes of the Gyrodyne were built, carrying the civil registrations G-AIKF and G- AJJP. G-AIKF made its first flight on 7 December 1947. G-AJJP was ready to join the test flight program in March 1948. On 28 June 1948 test pilot Basil Arkel established with G-AIKF a world speed record for rotary-winged aircraft of 200 km/h. Unfortunately, the first Gyrodyne crashed on 17 April 1949 during the preparations for a new 100-km closed circuit record flight killing pilot F.H. Dixon and his flight observer Derek Garroway.

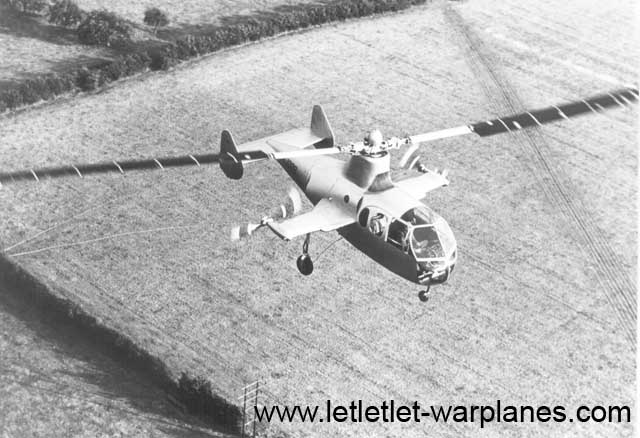

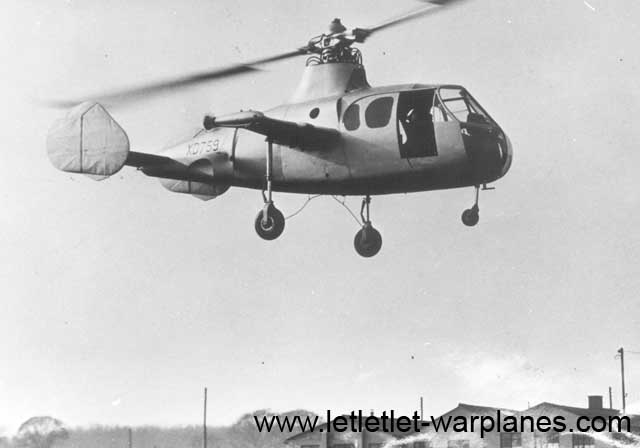

By 1953, the remaining second Gyrodyne was extensively rebuilt. It was fitted with a two-stage compressor from a Rolls Royce Merlin providing compressed air for the rotor-tip drives. Fuel-injection at the tips provided further rotor thrust. In fact the Austrian engineer Friedrich von Doblhoff had pioneered on this type of propulsion during the Second World War with the experimental WNF 342 helicopter and it was no coincidence that one of von Doblhoff’s development engineers, Dipl. Ing. August Stepan, was on Fairey’s payroll! Further, the Jet-Gyrodyne as this development was called featured not one but two shaft-driven propellers on the wing stubs. Fitted with the military serial number XD749, it made its first flight in January 1954. It was later for administrative reasons re-serialed as XJ389. By September 1956 it had made 190 transition landings and 140 autorotation landings. The flight experiences gained with the Jet-Gyrodyne were very important for the later Rotodyne! For those who are interested: the Jet-Gyrodyne is presently on display in the RAF Aerospace Museum at Cosford, UK.

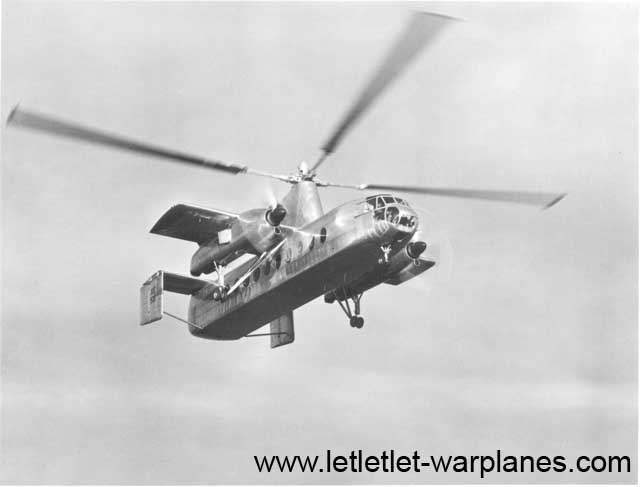

The Rotodyne on its first hover flight at White Waltham airfield
The Rotodyne on its first hover flight at White Waltham airfield

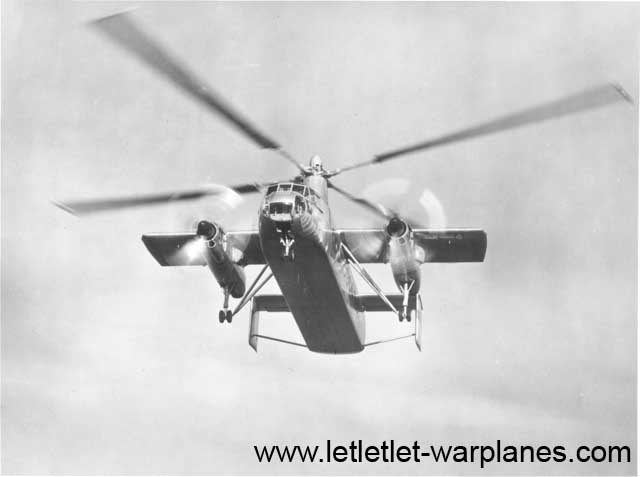

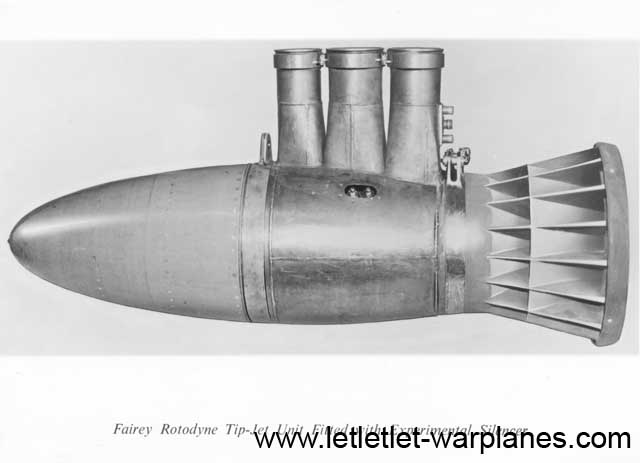

The first illustrations of the Rotodyne were released early fifties by Fairey. They showed a typical combination of a fixed-wing airplane and a helicopter. The Rotodyne design showed a conventional aircraft fuselage with at the rear side a large clam-shell type door that could be opened vertically. The fuselage, fitted with a double rudder, had a capacity for 40 to 50 passengers. Further it showed short plank-like shoulder wings with two engine nacelles housing turboprop engines. So far the ‘aircraft’ part description! Now the helicopter part: centrally on top of the fuselage was a central pylon fitted with a large four-bladed rotor with a diameter of some 27.5 metres. The blades were made of steel. Just as with the Jet-Gyrodyne this rotor was fitted with a jet-drive at each tip. During the start the both turboprops served as compressors to feed air to the rotor tips through a duct system in the wings, rotor head and rotor blades with the propellers in neutral pitch. In the jet-drives compressed air was mixed with kerosene and ignited. So, the rotor turned exclusively on the power of these tip-jets. One of the advantages of this system was the absence of rotor torque which did not have to be compensated for by an extra tail rotor. When the rotor r.p.m. was sufficient, a normal helicopter start was made. Next, when the Rotodyne had gained sufficient altitude, the engine power was slowly transferred to the propellers. At sufficient forward speed the fuel supply to the tip-jets was cut with the rotor revolving further in autorotation. At normal forward flight the wings contributed for 60% of the total lift; the remaining 40% was generated by the rotor blades. For the landing the whole procedure was reversed, a procedure that had been extensively practiced on the Jet-Gyrodyne. The thrust of the tip-drives was 454 kg. Basically the Rotodyne could land on an area as big as two tennis courts.

Rotodyne cockpit
Rotodyne cockpit

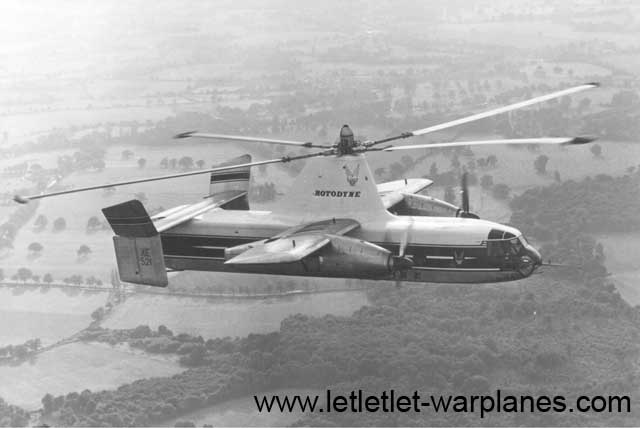

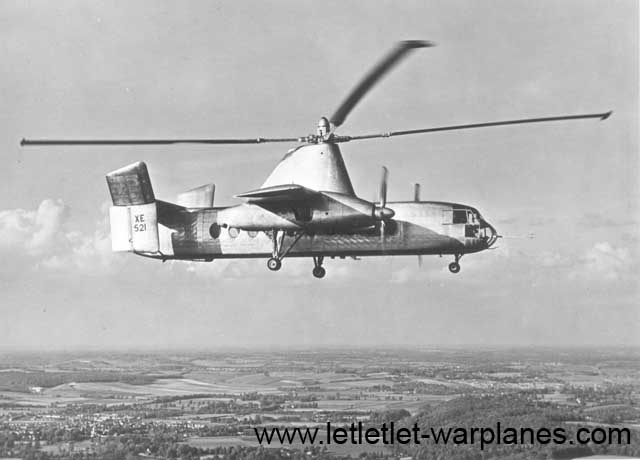

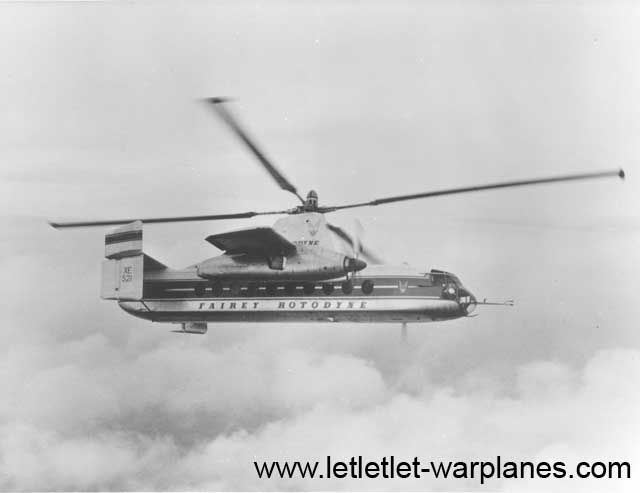

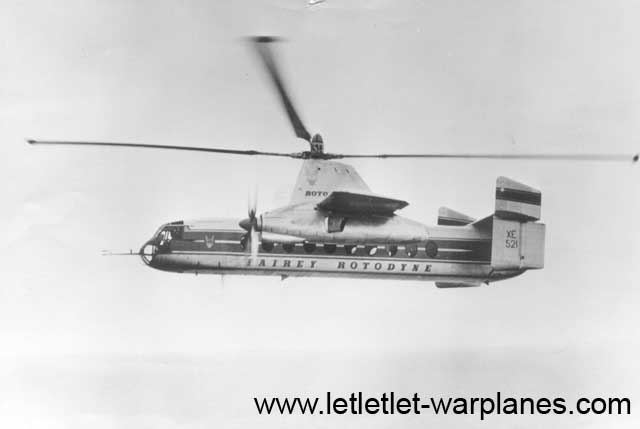

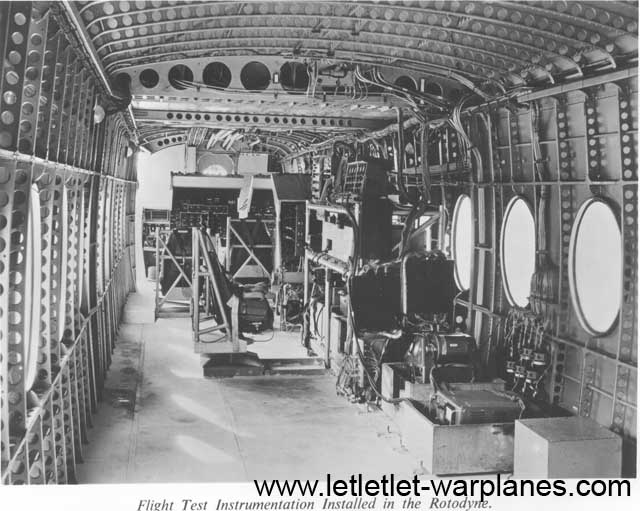

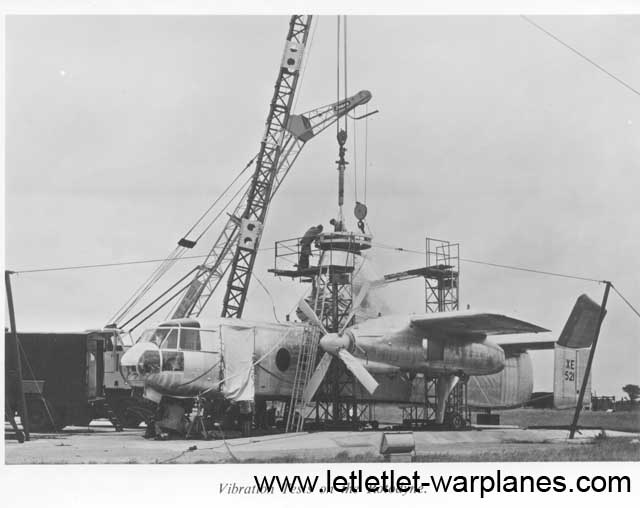

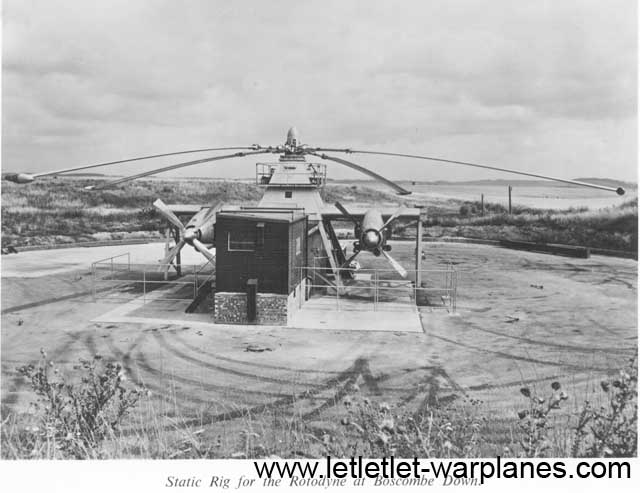

The Ministry of Supply ordered for evaluation trials a prototype, designated as the Rotodyne Y. It was fitted with two Napier Eland turboprop engines. After ground resonance trails indicated severe vibrations in the undercarriage legs, these were placed in a fixed position, strengthened with two extra struts. In this form, it made its first helicopter lift off on 6 November 1957. On this occasion it was flown by RAF test pilots W.R. Gelatly and J.G.P. Morton from the White Waltham airfield near Maidenhead. The first transmission flight from helicopter into autorotation mode and vice-versa took place on 10 April 1958. During this early flight stage, the Rotodyne flew in bare metal colours with only the RAF serial number XE521 on the vertical tail surface. Later, it was sprayed in a very attractive white/silver/Royal blue colour scheme with the name Fairey Rotodyne in large stencilling on the fuselage sides and in smaller form on the rotor pylon. In the summer of 1958 the fixed strutted undercarriage was replaced by its final fully retractable version fitted with extra vibration dampers. The Rotodyne showed its potential very clearly on 5 January 1959 when it set a world speed record in its class by flying a 100 km close-circuit with an average speed of 307 km/h. During this event it was again flown by first-hour test pilots Gelatly and Morton. In June of the same year, it was flown to Le Bourget airport to participate in the Paris air show.

Fairey publicity photo of the Rotodyne lifting a cargo load just to show it could also be used as a helicopter \'flying crane\'
Fairey publicity photo of the Rotodyne lifting a cargo load just to show it could also be used as a helicopter \'flying crane\'

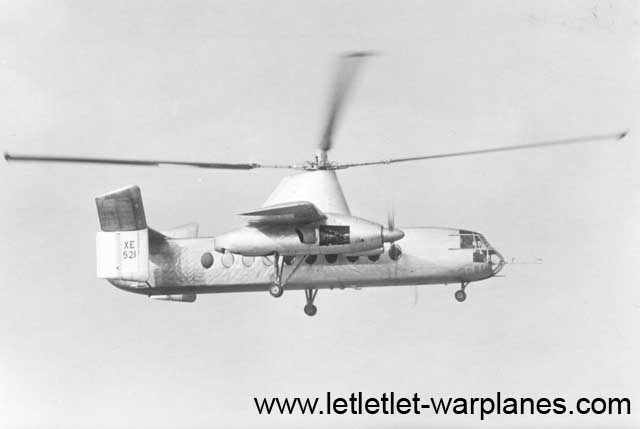

Originally, the Rotodyne was fitted with two short hanging vertical stabilizers connected with an extra strut to the rear fuselage. To improve forward stability during high speed flight it was fitted with two upwards extending extensions which could be placed in an upright and a horizontal position. Even this was not found to be enough and in its final form a third centrally placed vertical stabilizer was added.

Although the Rotodyne prototype was built under a military contract, Fairey also aimed at the civil market. After negotiations with various airline companies options were booked by B.E.A. for six final production aircraft followed by additional options by the U.S. New York Airways with a letter of intend for five with option for ten further machines and the Canadian Okanagan Airways with a letter of intend for one plus options for two more. Many other airline companies also showed a strong interest in the Rotodyne. Fairey had also contracted the U.S. Kaman Aircraft Corporation for future license construction. Further the Ministry of Supply had placed an option for 20 Rotodyne Z production models for the Royal Air Force. The Rotodyne Z production model was planned with more powerful Rolls Royce Tyne turboprops of 5250 shaft hp each and an increased wingspan. In this form, the Rotodyne could transport 50 to 65 passengers in the civil version and up to 70 armed soldiers in the military version. B.E A. had already planned a direct flight line from London Central to the city of Amsterdam! Also the Dutch naval air service MLD (Marine Luchtvaartdienst) had shown interest in the Rotodyne for operational use in New Guinea, although contacts were never official. Shortly after the visit of the Rotodyne to the Paris Airshow at Le Bourget it was demonstrated to NATO officers at Versailles.
